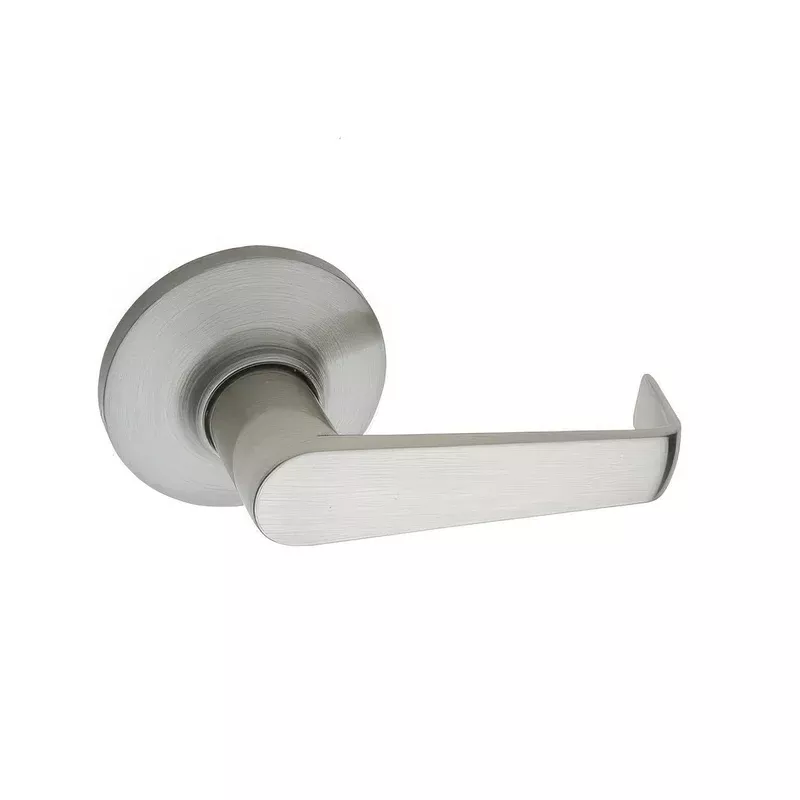

Copper Creek AL1241SS-UL Avery UL Listed Push Button Keyed Entry Door Lever

The Copper Creek AL1241SS-UL Avery is an UL-listed keyed entry door lever for doors that require keyed exterior access and an interior push-button lock control.

The lever operates the spring latch from either side. The keyed exterior and inside push button control the locking function while preserving lever operation from the interior.

Product Details

• Model: AL1241SS-UL
• Base SKU: AL1241SS
• Design: Avery
• Function: Residential Keyed Entry Door Lever
• Configuration: keyed exterior lever with interior push-button control
• Material: zinc
• Listing: UL listed
• ANSI standard: A156.2
• ADA compliant: yes
• Lever length: 4-1/8″
• Rose diameter: 2-9/16″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 1″
• Handing: reversible
• Latch faceplate: round corner
• Cylinder: 5-pin KW1 standard

Compatibility: Confirm the AL1241SS-UL listing, keyed-entry function, door preparation, backset, latch faceplate, keyway, keying requirements, and any project-specific fire-door requirements before ordering.

Additional Copper Creek Information

Copper Creek AL1241 Avery Lever Installation Guide

Copper Creek AL1241 Avery Lever Specifications

View Copper Creek Manufacturer Warranty

Shop All Copper Creek Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
