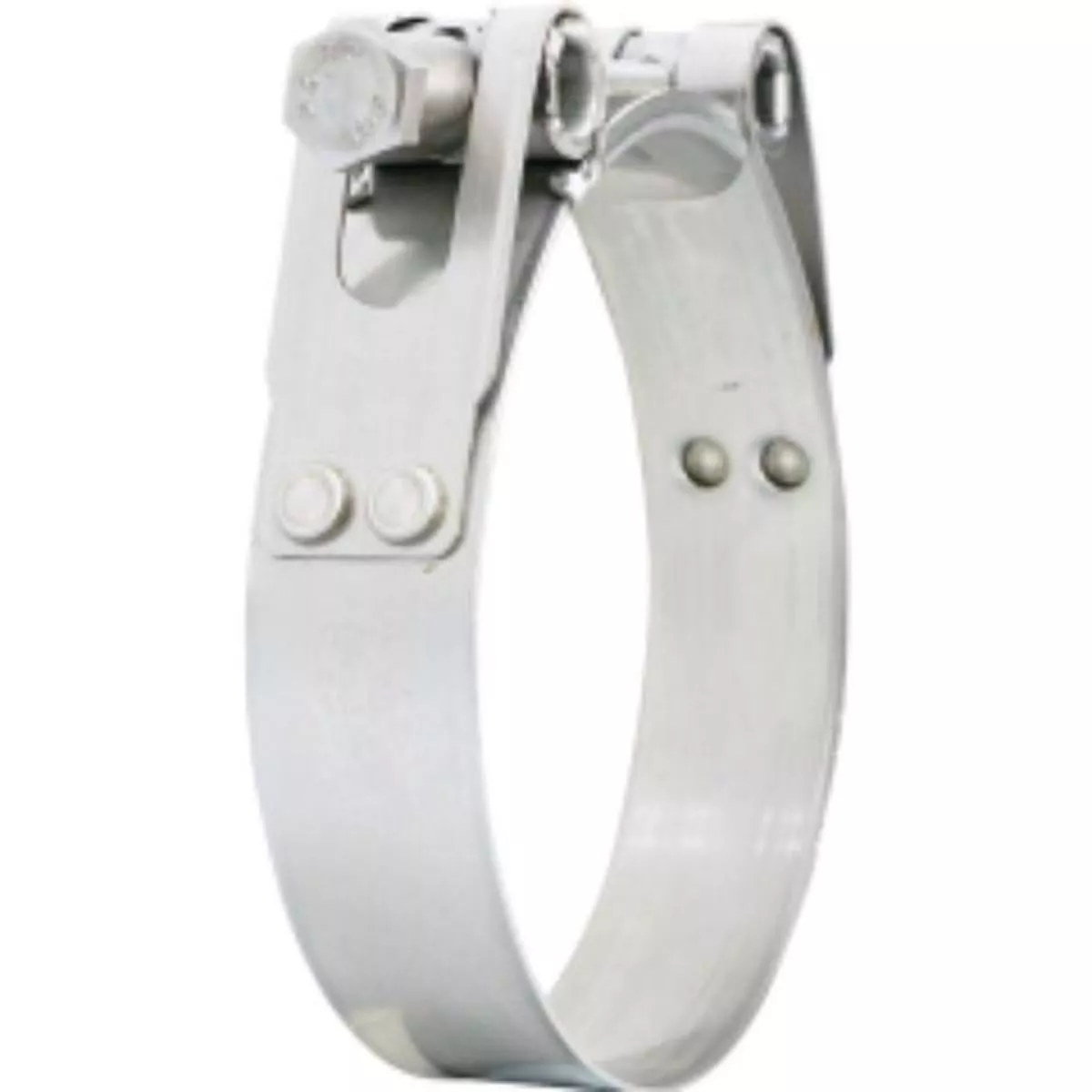

Kale Hd25 91-97mm W4 Tox Ea

HD259197W4T | Kale HD25 91 97mm W4 TOX (ea)

Innovatively designed and meticulously engineered Kale Heavy Duty T Bolt clamps have achieved new standards in performance and reliability
Kale HD T Bolt clamps are manufactured utilising TOX Clinching joints. A cold forming press technique that is more than 70% stronger than welding and superior to tab style mechanical locks. Produced in Europe to DIN 3017 3 standards Kale HDT Bolt clamps are suitable for high shore hardness or reinforced hoses.
Additional design features include:No welding and no contact corrosion pointsHollowshape trunnions to reduce tensile force on the bolt and clinched jointA profiled bridge with extended tabs for secure attachment to the band without weldingW1 steel bolts are Class 8.8 and feature an integrated spacer in place of a separate bushRolled band edges which are designed to protect damage to the hose or wall fabricA high clamping force with low free torque value.
SpecificationBand With: 25mmHex: 13mmDiameter Range: 91 97mmTightening Torque: 20Nm
MaterialsBand: Stainless Steel 1.4301Bridge: Stainless Steel 1.4301Bolt: ISO 3506 1 Class A2 70Bush: Stainless Steel 1.4301Trunnion: Stainless Steel 1.4301Corrosion Resistance acc. to ISO 9227: Min. 240 hours
Available in 2 materials (W1 and W4) in sizes ranging from17 19mm through to 239 252 mm typical applications include suction and pump hoses across a wide range ofIndustriesAgricultureAutomotiveMarineMiningPlumbingOEMs.
