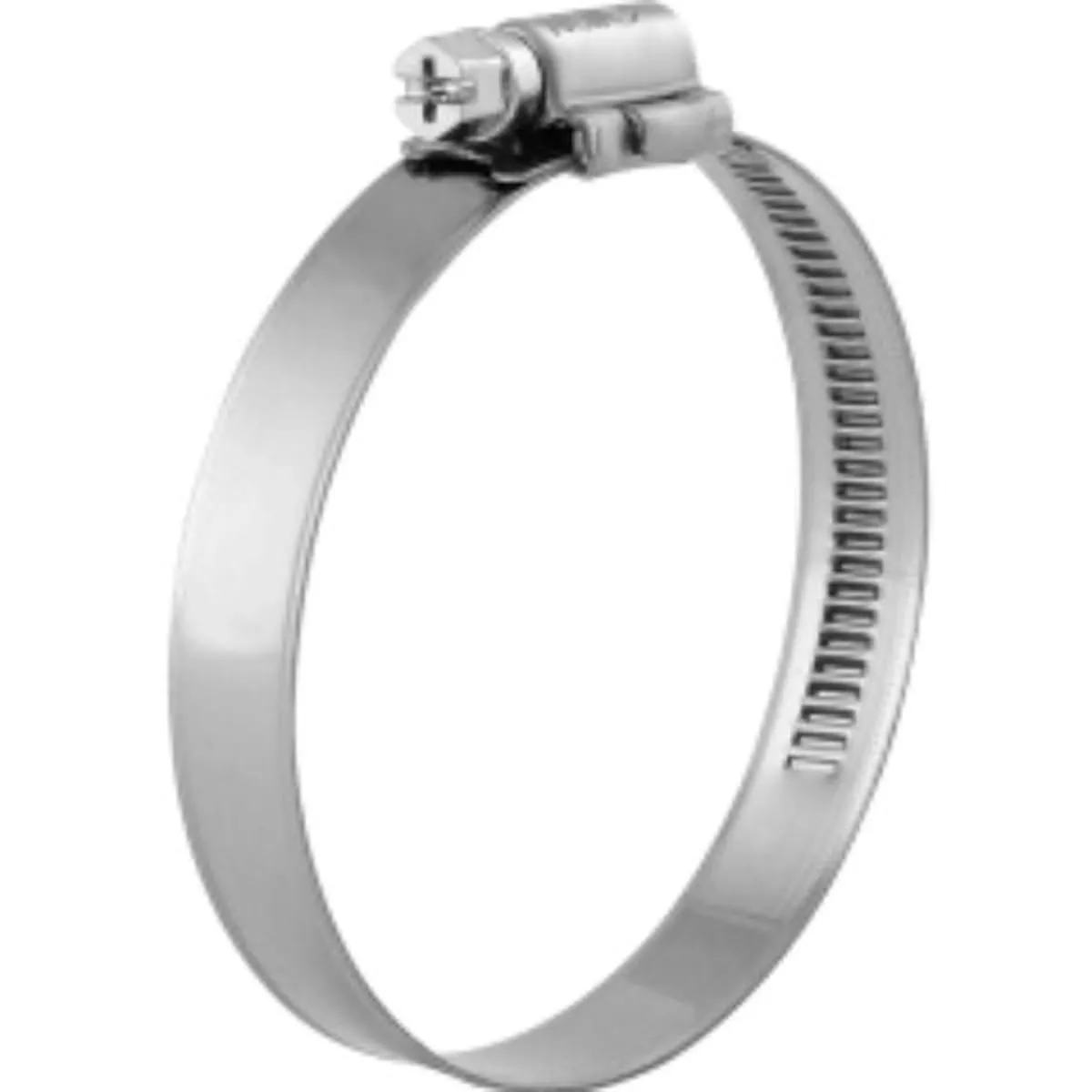

Kale Wd12 100-120mm W3 Ea

WD12100120W312mm Band Width Worm Drive Clamp

WD12 | 100 120mm capacity | W3

Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr free and convex band edges.
100% traceability on the product.
High clamping force with low tightening torque.

Technical Spec:
Band Width12mm
Capacity (minmax)100 120mm
Tightening Torque (max)5.0Nm (1)
Screw Housing Length24mm
Grade W3Stainless Screw, Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227200 (3)
Screw HeadFL | 7mm Hex

(1) Recommended tightening torque. Recommended tightening speed 300350 rpm
(2) Screw1.4016 Stainless DIN EN 10088 3 or equivalent | Housing & Band1.4016 Stainless DIN EN 10088 2 or equivalent
(3) 10% red rust allowed on the total surface of W3 products, after salt spray test

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
