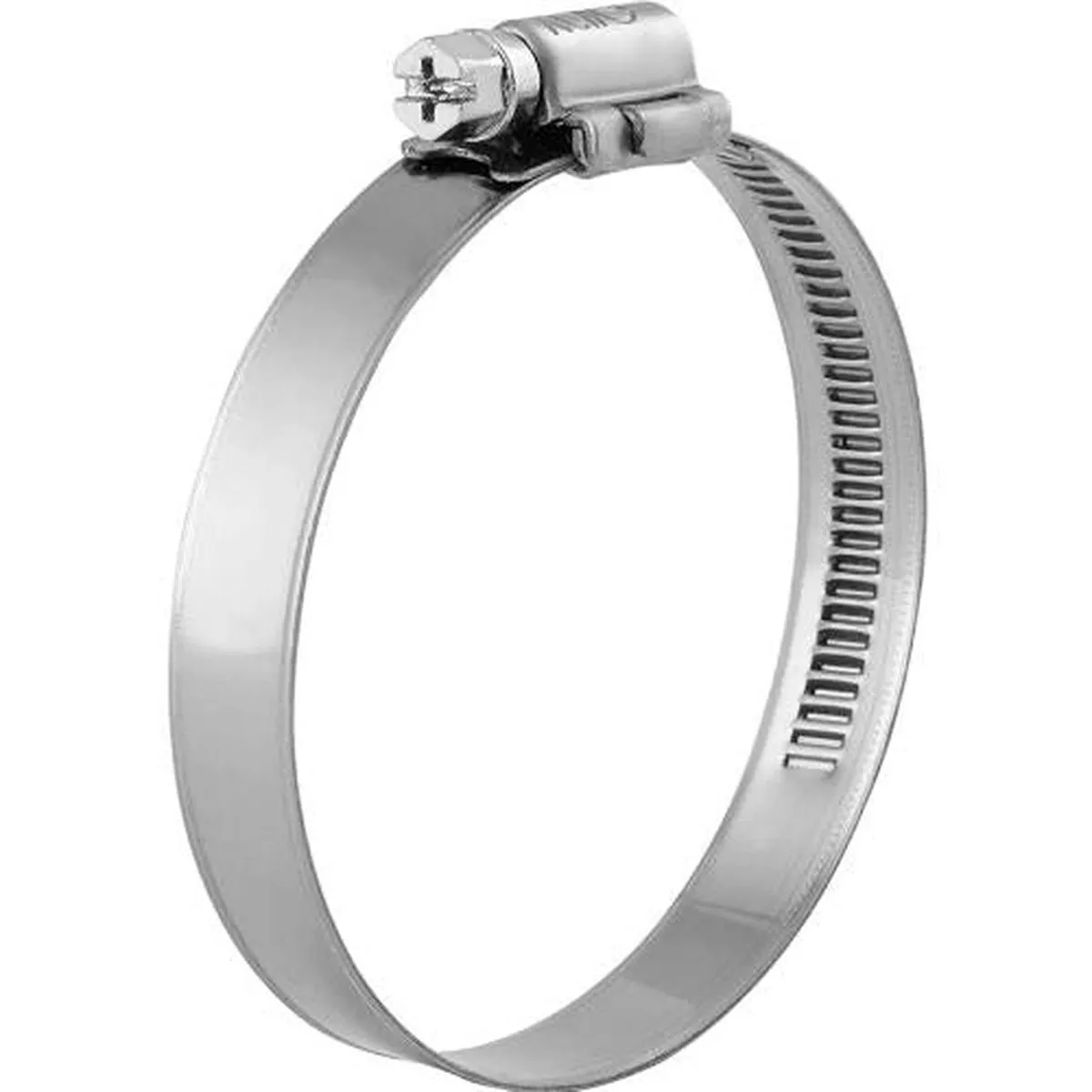

Kale Wd12 16-27mm W4 10Pc

WD121627W4 – 12mm Band Width Worm Drive Clamp

WD12 | 16-27mm capacity | W4

Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr-free and convex band edges.
100% traceability on the product.
High clamping force with low tightening torque.

Technical Spec:
Band Width – 12mm
Capacity (min – max) – Diam 16-27mm
Tightening Torque (max) – 5.0Nm (1)
Screw Housing Length – 24mm
Grade W4 – Stainless Screw, Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227 – 240
Screw Head – FL | 7mm Hex

(1) Recommended tightening torque. Recommended tightening speed 300 – 350 rpm
(2) Screw – 1.4567 Stainless DIN EN-10088-3 or equivalent | Housing & Band – 1.4301 Stainless DIN EN-10088-2 or equivalent

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
