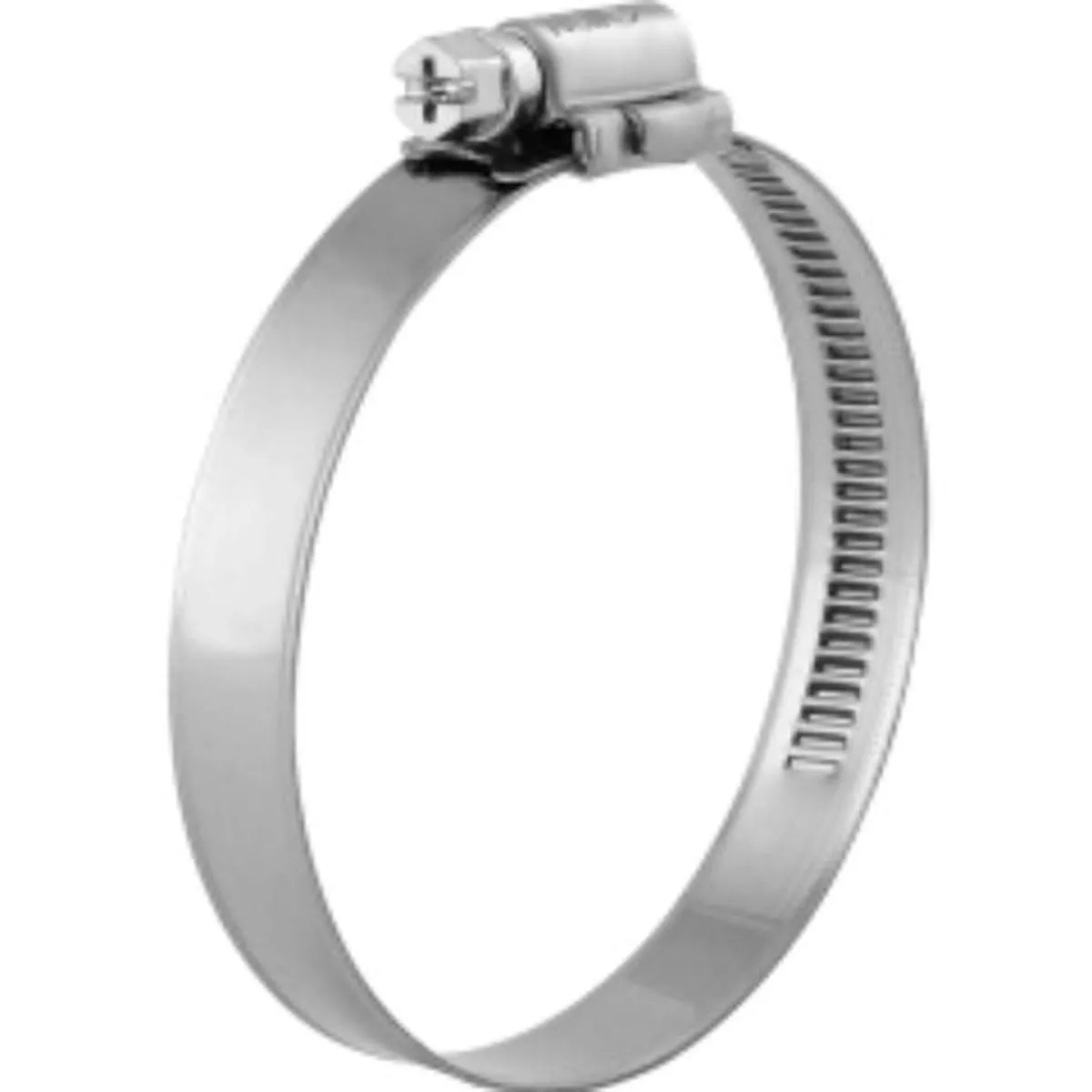

Kale Wd12 80-100mm W4 Ea

WD1280100W412mm Band Width Worm Drive Clamp

WD12 | 80 100mm capacity | W4

Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr free and convex band edges.
100% traceability on the product.
Higher tightening torque and clamping force with 12mm band width.
High clamping force with low tightening torque.

Technical Spec:
Band Width12mm
Capacity (minmax)80 100mm
Tightening Torque (max)5.0Nm (1)
Screw Housing Length24mm
Grade W4Stainless Screw, Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227240
Screw HeadFL | 7mm Hex

(1) Recommended tightening torque. Recommended tightening speed 300350 rpm
(2) Screw1.4567 Stainless DIN EN 10088 3 or equivalent | Housing & Band1.4301 Stainless DIN EN 10088 2 or equivalent

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
